Case Studies

We are experienced maintenance, asset management and reliability consultants who improve operational performance by addressing people, process and plant issues. We do this by measuring, analysing and understanding your situation and then working with you to make improvements.

Our single most important promise is to deliver lasting solutions to you. Immediate benefits come from savings in time, money and worry. Lasting benefits come from improved competitive position, regulatory compliance and peace of mind.

We have a proven method of passing on expertise so that improvements are enduring and not just a flash in the pan. This means that our customers around the world in a wide range of industrial sectors have consistently lower maintenance costs, lower downtime costs and can plan future investments with confidence. In short, our work enhances their competitive position.

Capital Investment Programme for a gas company

Background to the Project

A large multi-stream European gas terminal was nearing the end of its design life. Whilst the Project group worked up proposals for a replacement terminal, the operations staff were asked to produce an alternative plan which involved a phased ten-year capital replacement programme for the existing terminal.

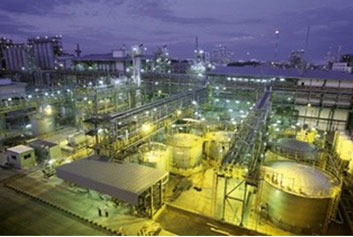

Gas plant

What we did

Structured workshops were undertaken which involved a large proportion of front-line staff. The purpose of these workshops was to identify potential issues affecting plant uptime and performance. These issues were quantified and prioritised then solutions were developed.

A Monte Carlo time-based availability model was developed for the terminal. Historical downtime data was combined with expected failure patterns so that downtime could be projected for ten years into the future. This allowed for proper phasing of the refurbishment activities.

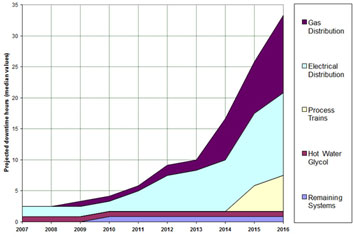

Graph showing projections for following 10 years


A ten-year $100m capital investment programme was produced to secure the terminal availability. This had the following three themes:


  • Major investments to replace worn out or obsolete systems
  • Refurbishment of key parts of other systems
  • Organisational skills competency and knowledge development


A key constraint for this programme was that all many activities had to be carried out within the existing turnaround schedule for the terminal.

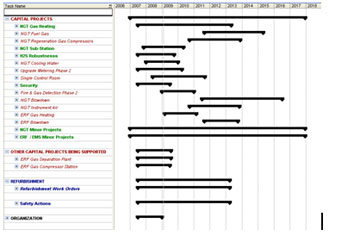

Chart showing project plan


Downtime reduction on a process plant

Background to the Project

The availability of a newly-commissioned process plant was below requirements leading to customer dissatisfaction and penalty payments. The local operations team had put together an improvement programme. We provided an expert opinion to reassure the customer that all reasonable improvement steps were indeed being made.

What we did

A management audit was carried out to check that the plant was being operated and maintained to recognised standards of best practice. This assessment consisted of a structured set of interviews, observations and data review. It followed the Business Excellence Model developed by the European Foundation for Quality Management.

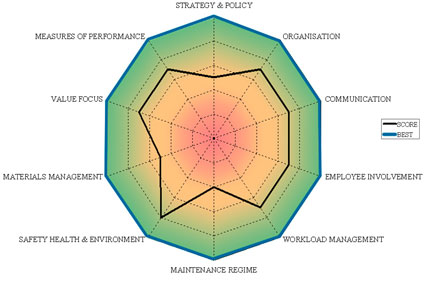

Audit results chart


The audit was backed up with an availability model which simulated the performance of key pieces of equipment. The model was used to cross-check that the customer requirements were feasible.

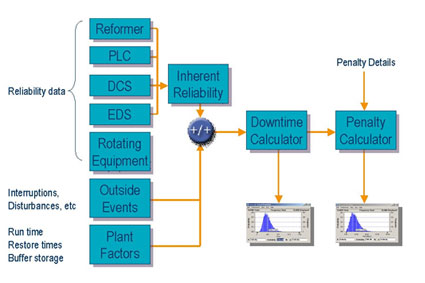

Flowchart showing issues in the business


Workshops with operational staff quantified the risk from known issues as well as potential issues which had not yet occurred.



All of this work was used to put together a prioritised two–year improvement programme which followed the classical change management approach. It was so successful that ultimately the customer doubled his business with the process plant.

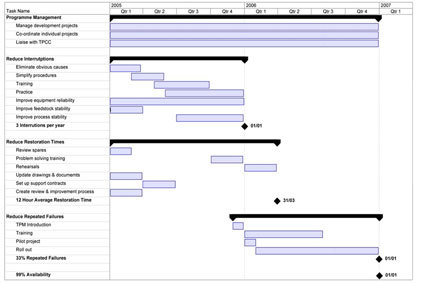

Chart showing project improvement plan


Competencies & Skills Assessment for an oil and gas company

Background to the Project

A world-wide oil & gas company had undertaken a review to ensure that its corporate reliability group was working effectively with its field and refinery-based operational staff. This identified the need to strengthen the competencies and skills within the group and the desirability to set up a technical ‘ladder’ in addition to the management ‘ladder’ as a means to ensure that key technical skills were not lost over a period of time.

What we did

We advised on the skills and competency levels required for the various roles within the reliability group. Pilot assessments were carried out to check that the models were practicable.


The competencies and skills model has been successfully rolled out within the Oil & Gas company. We have been engaged to carry out training programmes as required and to cross-check a random sample of the management assessment interviews.


Engineering Spare Parts Store System for a Pharmaceutical Company

We helped the company set up a validated stores system, train staff. Modelling was also used to assess part parts requirements and optimise stock holdings.


Storage facility in warehouse


Having the benefit of a single stock control system, the pharmaceutical company has identified that existing stocks can be halved without compromising plant uptime. The engineers themselves have been able to devote more of their time to continuous improvement activities.


Asset Management Strategy for a Water Company

Background to the Project

The water company had just set up two regional control centres which would house all staff associated with operational and strategic activities associated with managing a water distribution network. As part of this activity a new risk-based asset management strategy was required for all underground assets which would be compliant with the requirements of PAS 55.

What We Did

A series of workshops were held with key stakeholders to assess the various risks involved in different parts of the network and the best mitigation activities. The water company had previously undertaken a number of internal studies to identify high-risk areas. This work was built upon instead of starting again from scratch. In addition, information collected for the regulator was utilised – again to save time. A two-step process whereby the first step identified high risk water quality zones allowed effort to be focused quickly into the most needy areas.

Thematic map


The new asset management strategy resulted in savings of 15% in operating and capital expenses without compromising customer service or regulatory requirements.


Auditing & Benchmarking Maintenance for a Food & Drinks Company


A world-wide food and drinks company had started an operational excellence programme. As part of this it wished to establish the current total cost of maintenance (i.e. direct and in-direct costs) and what could be saved by implementing maintenance best practice.

World map

What We Did

A random sample of 10% of the plants were audited and benchmarked against each other. The approach used was along the lines of that originally developed by Rank Xerox. Maintenance drivers were established and best practices identified. Savings by adopting best practice were estimated. Individual improvement plans were developed for each plant studied and general lessons learned were shared with the corporate improvement team. Finally a series of face to face and on-line training sessions and newsletters were developed to disseminate the learning from the study.


One particular site reduced downtime from 8% to 5%, increased throughput by 65% and doubled its profitability by adopting best practice. The organisation as a whole realized just how much existing maintenance practices were eating into profits. Therefore it revised its maintenance strategies to rely more on condition monitoring for critical equipment and make better use of failure data to ensure that key equipment problems can be resolved.
